Road Reclaimer / Stabiliser / Pulveriser

Available for Wet or Dry Hire

2023 Caterpillar RM400


What it does

  • Road Reclaiming

  • Pavement Recycling

  • Insitu Stabilisation

  • Asphalt Pulverisation

​

Asphalt pulverising is a highly effective process that can address common pavement issues, including severe cracking and polishing caused by continuous traffic.

​

By grinding up existing surface layers in place, this process creates a new paving mix using all the old material and new, eliminating the need for costly excavation. Recycling the existing material, insitu means trucking and storage is eliminated for the old materials.

This means faster turnaround times, less delays, costs saving.

​​

The mixer is an excellent solution for those looking to save costs and reduce their environmental impact.



Allowing for the addition of further materials, along with lime and water as required. It provides a more efficient and sustainable mixing process. ​​​​

Overview

  • Power: 310kw / 415.7HP

  • Diesel tank: 1056L

  • Cutting/Mixing With: 2438mm

  • Maximum Cutting/Mixing Depth: 508mm

  • Length: 9.56 m

  • Width: 3 m

  • Maximum Height: 3.5 m

  • Wheelbase: 6.32 m

  • Ground Clearance: 500 mm

Water

  • 16 spray heads Application rate of additives is accurately monitored through a computerised metering system

  • A wide range of variable flow rates can be optimised for a variety of applications:

  •  Water flow rates from 30-1900 liters per minute (8-500 gallons per minute)

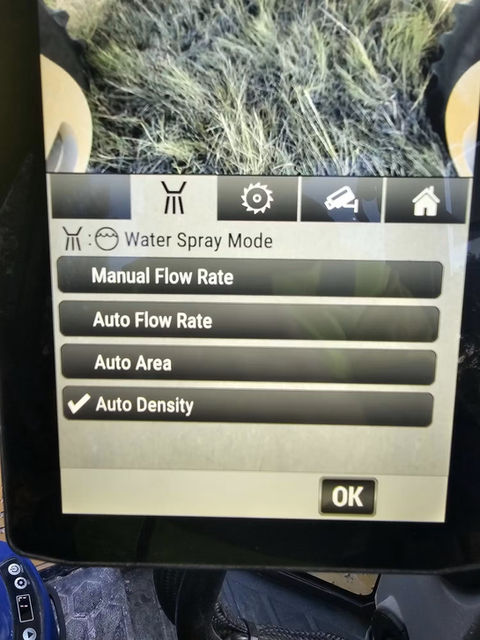

  • Easily set up the spray system to deliver liquid additives according to specifications: manual or automatic, volume per m2 (yd2) or percent of material density.

Mixing

  • Maximum Cutting/Mixing Depth: 508mm

  • Operating Speed: 4.8km/h

  • Maximum Travel Speed: 11km/h

  • Rotor Speed - First (at 2100 Engine rpm): 108r/min

  • Rotor Speed - Second (at 2100 Engine rpm): 134r/min

  • Rotor Speed - Third (at 2100 Engine rpm): 159r/min

  • Electronic controls deliver ideal mix quality by keeping the rotor at the proper depth and the machine at an optimized speed

  • Manage gradation for a wide variety of materials and applications with three separate rotor speeds that can be selected while in operation

  • Easily modify material gradation by adjusting the front and rear mixing chamber doors, a simple gauge located on the LCD display keeps the operator informed of door position

  • Rear rotor chamber door float feature simplifies operation and allows operator to select desired down pressure

Safety

  • Back-up alarm (front and rear)

  • Front and rear facing cameras

  • Front and rear chamber door cameras

  • Folding side view cameras (2)

  • Folding LED safety beacon

  • Ground level emergency shutdown switches (3)

  • Horn (front and rear)

  • ROPS

  • Platform handrails and guardrails

  • Mirrors

  • Working lights (halogen or LED)

Equipment

  • UHF

  • Additional color touch screen

  • Upgraded: Water spray system

  • Push bar

  • Service and Maintained via Westrac

  • Integrated air compressor

Disclaimer: Some of the above information is obtained from the Caterpillar website and can be found here
